System Modules¶

As noted in ADR-00002, the system architecture adopts a modular monolith approach, adhering to principles of Domain-Driven Design (DDD).

Architecture Styles¶

Individual modules are given freedom to choose their architectural style, however, we encourage the adoption of Clean Architecture or Hexagonal Architecture styles to ensure separation of concerns and promote maintainability.

Clean Architecture¶

The module is structured into distinct layers, each with specific responsibilities:

Domain Layer: Contains the core business logic and domain entities. This layer is independent of any external systems or frameworks.
Application Layer: Contains application services that orchestrate domain logic and handle use cases.
Interface Layer: Contains the API controllers and routes that handle incoming requests and responses.
Infrastructure Layer: Contains implementations for data access, external services, and other infrastructure concerns

clean layers

Reference Module: Exam Library

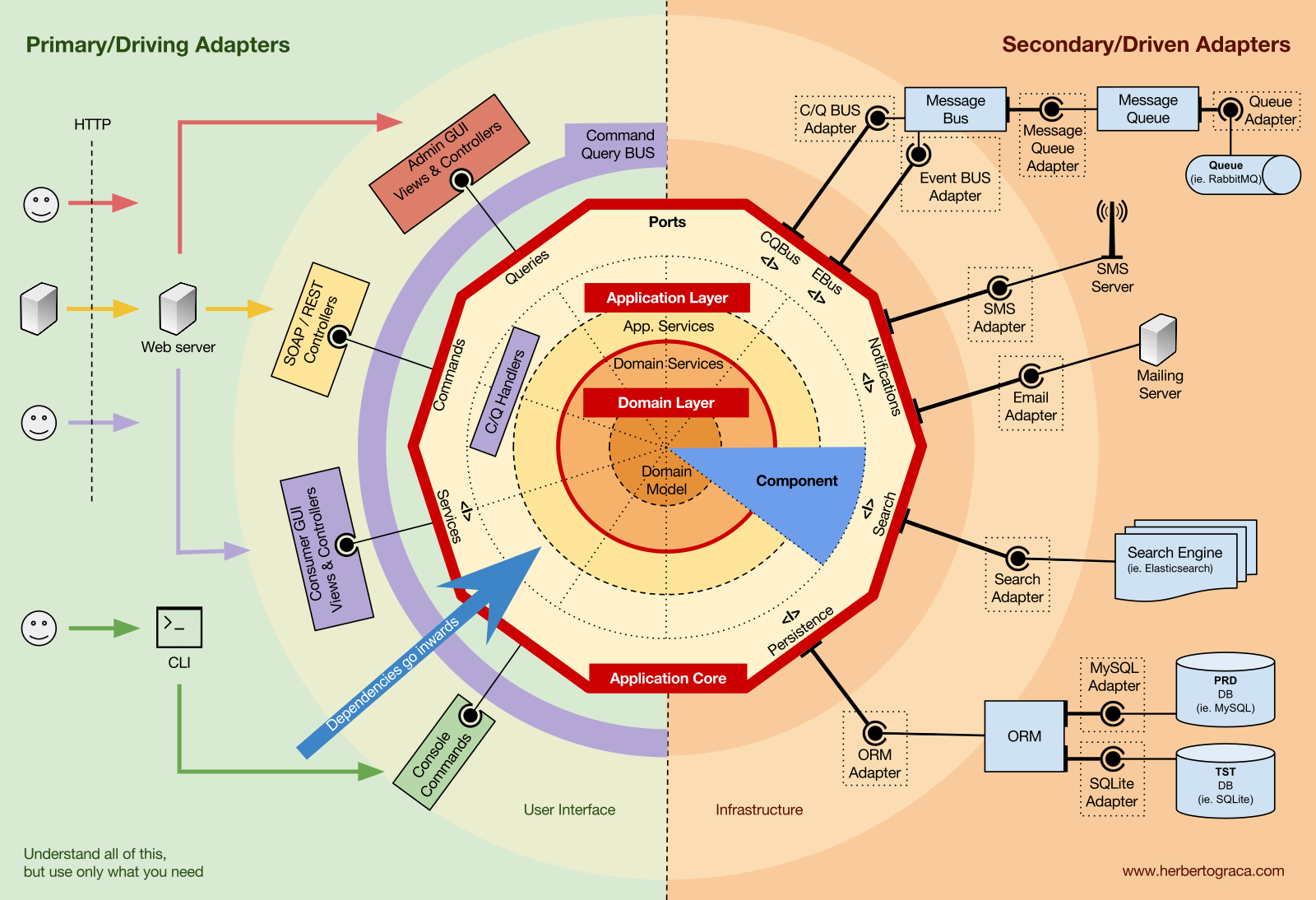

Hexagonal Architecture¶

The module is designed around the concept of ports and adapters, allowing for flexibility and easy integration with external systems:

Core Domain: Contains the business logic and domain entities.
Ports: Define interfaces for communication between the core domain and external systems.
Adapters: Implement the ports to interact with external systems such as databases, APIs, and user interfaces.

hexagonal

Reference Module: Examination - Based on ThreeDotLabs' interpretation via Wild Workouts

Module Structure¶

Each system module is structured to encapsulate the various layers of the application, ensuring separation of concerns and maintainability. The typical structure of a module is as follows:

core / backend¶

internal/DOMAIN_MODULE
├── api          # Interface Layer: API controllers and routes
├── app          # Application Layer: Application services and use cases
├── domain       # Domain Layer: Core business logic and domain entities
├── infra        # Infrastructure Layer: Data access and external services
└── DOMAIN_MODULE.go  # Module definition and entry point

Mock Implementations¶

test/mocks/DOMAIN_MODULE/

In order to configure the relevant mock implementations for use within tests, each system module will require updates to the .mockery configuration file to outline relevant system module packages.

frontend¶

api/frontend/src/DOMAIN_MODULE
├── __tests__   # Tests specific to the module
├── assets       # Assets specific to the module
├── components   # Vue components specific to the module
├── composables  # Vue composables specific to the module
├── configs      # Configuration files specific to the module
├── layouts      # Vue layouts specific to the module
├── router      # Vue router definitions specific to the module
├── services     # Services (API clients) specific to the module
├── stores        # Vuex store modules specific to the module
├── styles       # Styles specific to the module
├── utils       # Utility functions specific to the module
├── views        # Vue views specific to the module
└── DOMAIN_MODULE.ts  # Module definition and entry point

REST API¶

api/rest/DOMAIN_MODULE/{version}
├── client # Generated API client for the individual module version
│   ├── cfg.yaml # Configuration for the individual module version server
│   ├── client.gen.go # Generated client code for the individual module version
│   └── generate.go # Code generation script for the individual module version
├── server # Generated API server for the individual module
│   ├── cfg.yaml # Configuration for the individual module version server
│   └── generate.go # Code generation script for the individual module version
└── api.yaml # OpenAPI specification for the individual module version

Database¶

Note: Migration files must be defined within a consolidated db/migrations/ directory to ensure proper execution order during migration runs.

Migrations¶

db/migrations/ # Database migration files

Queries and Schemas¶

db/DOMAIN_MODULE
├── queries  # Database query files specific to the module
└── schemas  # Database schema files specific to the module

Additionally, each system module will require updates to the corresponding .sqlc file to outline the relevant configuration.
